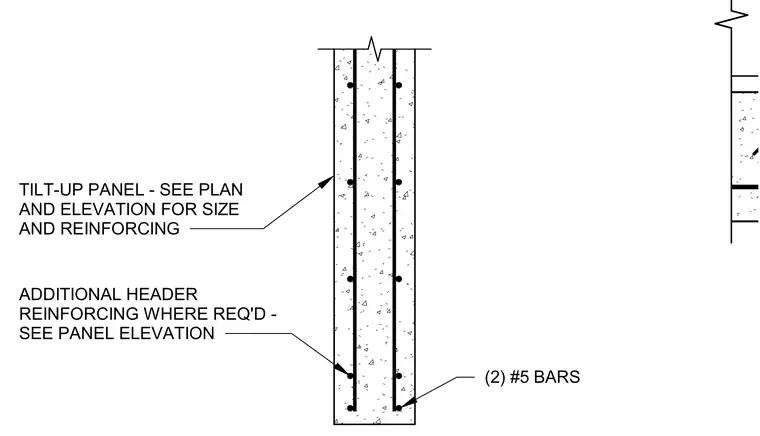

The tilt-up concrete panel header contains two number five vertical reinforcing bars. Additional header reinforcing is provided as required per the panel elevation. The overall panel size and primary reinforcing are determined by the structural plan and elevation.
