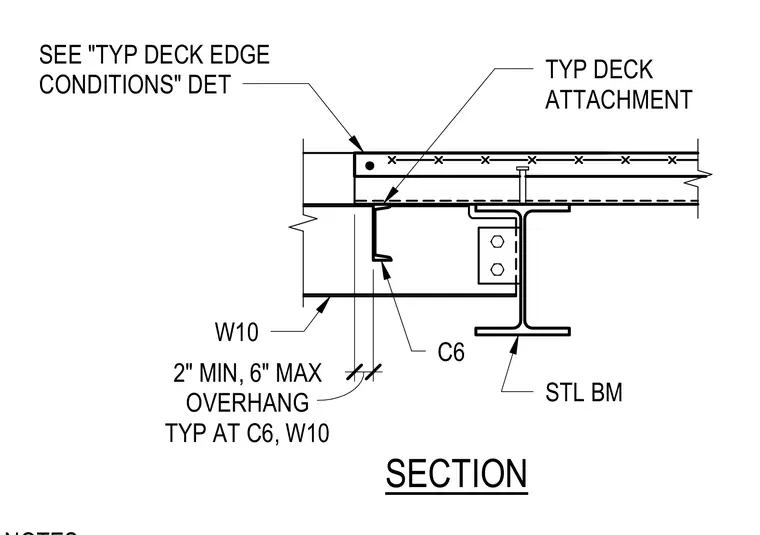

A metal deck bears over a W10 steel beam and a C6 steel channel edge member. The metal deck features typical deck attachment across the support. The C6 channel maintains a two-inch minimum and six-inch maximum overhang relative to the supporting W10 steel beam. Additional conditions reference a typical deck edge detail.
W10 C6 SEE "TYP DECK EDGE CONDITIONS" DET 2" SECTION TYP DECK ATTACHMENT 2" MIN, 6" MAX OVERHANG TYP AT C6, W10 STL BM
