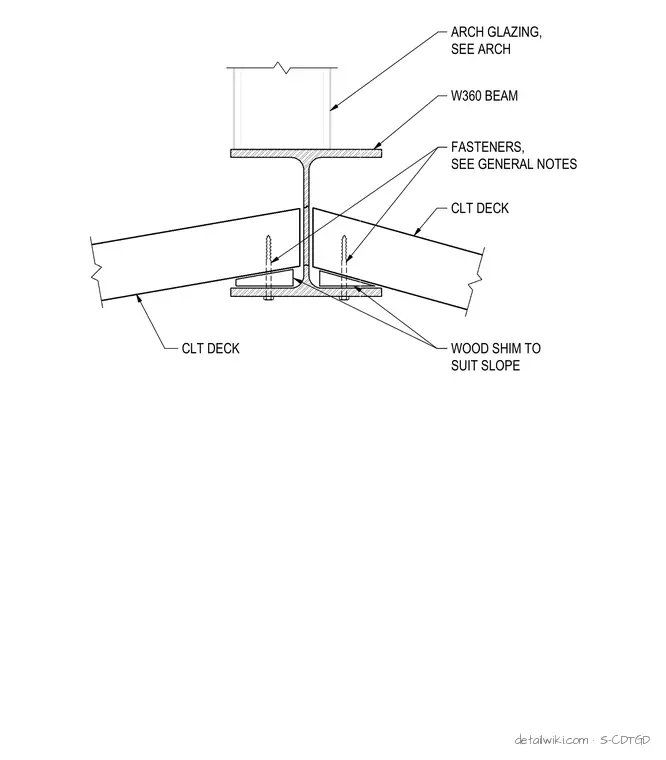

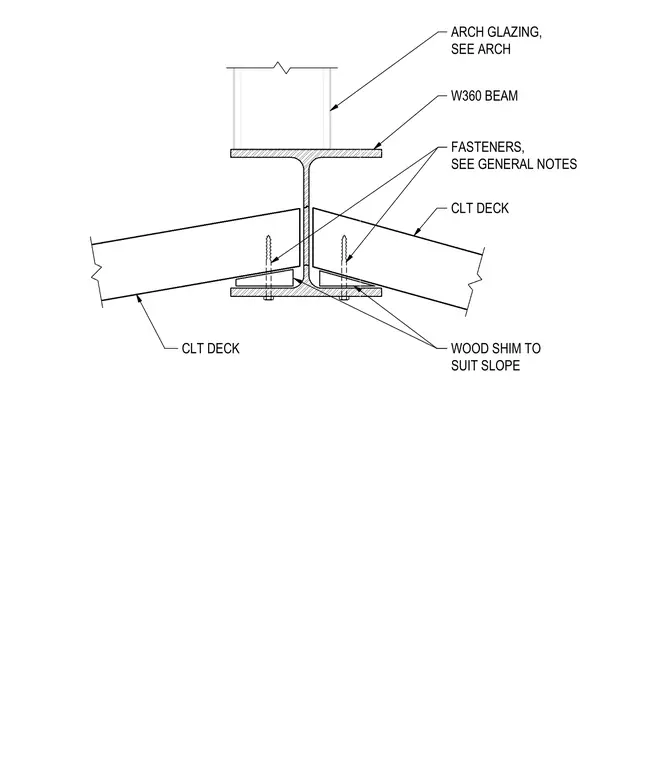

S-CDTGD — Cranked Clt Roof To W Beam Connection

Structural · S-CDTGD

Cranked Clt Roof To W Beam Connection

Units: metric
Sheet: S-OB-5.53
Discipline: Structural

Materials

Glass / Glazing Steel Timber / Wood

Elements

Arches Beams Connections / Plates Decks Roofs

Connections

Timber / Mass-Timber Connection

Text on the drawing

WOOD SHIM TO SUIT SLOPE FASTENERS, SEE GENERAL NOTES CLT DECK CLT DECK W360 BEAM ARCH GLAZING, SEE ARCH
