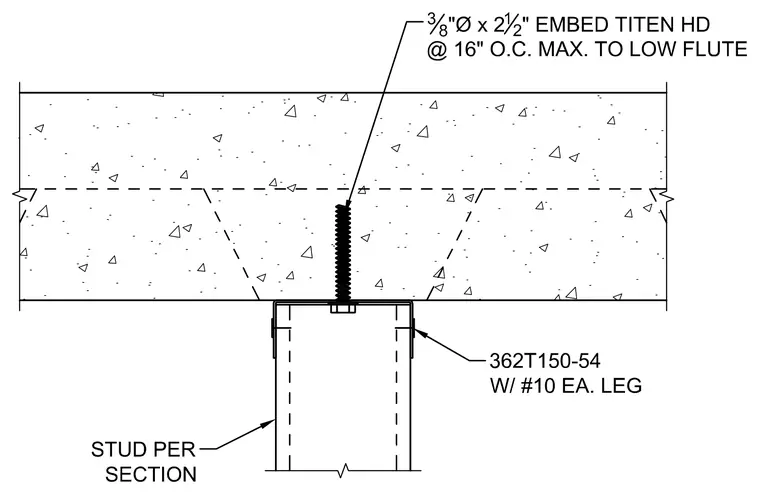

A cold-formed steel stud of size 362T150-54 connects to the underside of a concrete-filled metal deck. A track member is fastened to the low flute of the metal deck using three-eighths-inch diameter by two-and-a-half-inch embedment Titen HD anchors spaced at sixteen inches on center. The stud is secured to the track with number ten screws at each leg.
