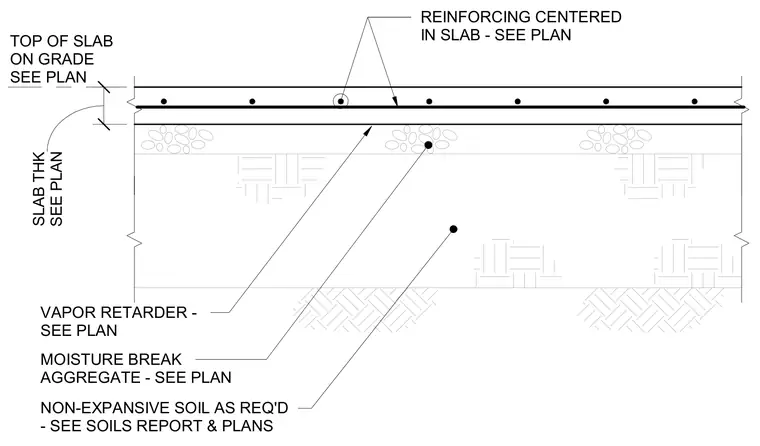

This structural section details a standard concrete slab on grade assembly supported by non-expansive soil as required by the soils report and plans. The concrete slab rests on a moisture break aggregate base with an interposed vapor retarder. Reinforcing steel is centered within the slab thickness, with dimensions and specific thicknesses sized per plan.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS VAPOR RETARDER - SEE PLAN MOISTURE BREAK AGGREGATE - SEE PLAN REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
