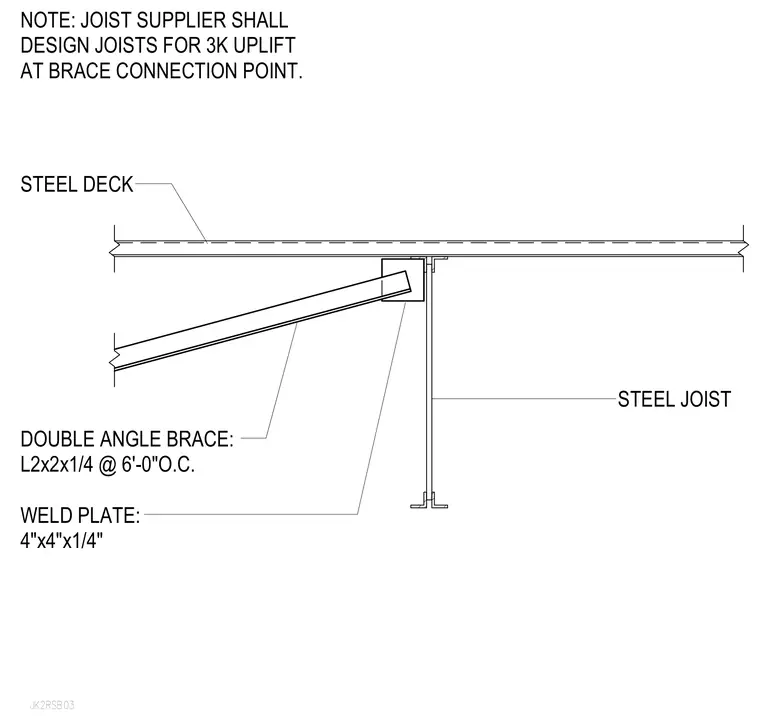

A double angle brace of size L2x2x1/4 at six feet on center ties back to a steel joist supporting a steel deck. A four-inch by four-inch by quarter-inch weld plate provides the connection point at the joist. The joist supplier must design the joists for three kips of uplift at the brace connection point.
JK2RSB03 NOTE: JOIST SUPPLIER SHALL DESIGN JOISTS FOR 3K UPLIFT AT BRACE CONNECTION POINT. STEEL DECK WELD PLATE: 4"x4"x1/4" DOUBLE ANGLE BRACE: L2x2x1/4 @ 6'-0"O.C. STEEL JOIST
