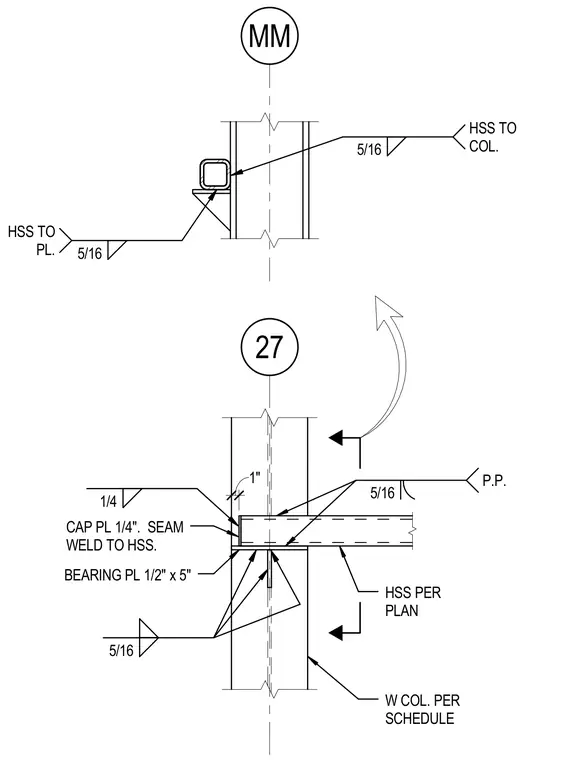

An HSS member frames into a wide flange column sized per schedule with a bearing plate measuring 1/2 inch by 5 inches welded underneath. A 1/4 inch cap plate is welded to the end of the HSS member with a seam weld. Fillet welds of 5/16 inch size connect the HSS to the bearing plate and column flange.
1" 5/16 P.P. BEARING PL 1/2" x 5" CAP PL 1/4". SEAM WELD TO HSS. 5/16 1/4 W COL. PER SCHEDULE HSS PER PLAN 27 MM 5/16 HSS TO PL. 5/16 HSS TO COL.
