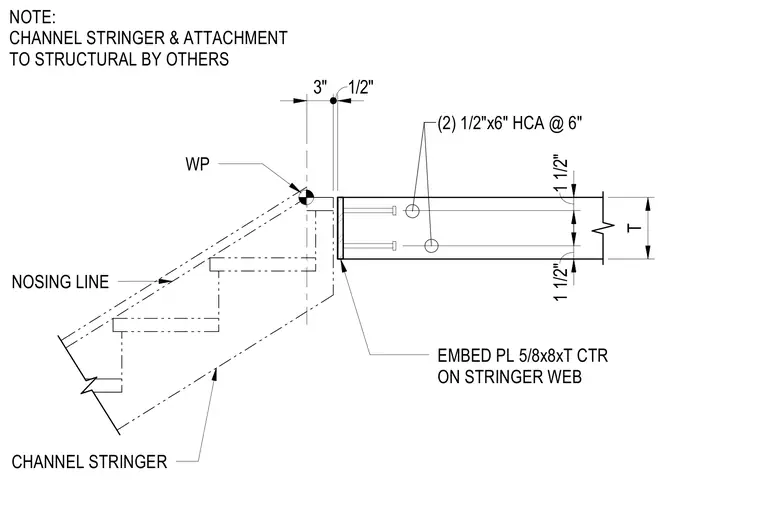

A stair channel stringer connects to a structural embed plate centered on the stringer web. The embed plate measures 5/8 inch thick by 8 inches by T, welded or anchored with two 1/2-inch by 6-inch headed concrete anchors spaced at 6 inches. The work point aligns with the nosing line, offset by 3 inches and 1/2 inch. The channel stringer and its attachment to the structure are provided by others.
NOSING LINE CHANNEL STRINGER NOTE: CHANNEL STRINGER & ATTACHMENT TO STRUCTURAL BY OTHERS WP 3" 1/2" 1 1/2" 1 1/2" (2) 1/2"x6" HCA @ 6" EMBED PL 5/8x8xT CTR ON STRINGER WEB T
