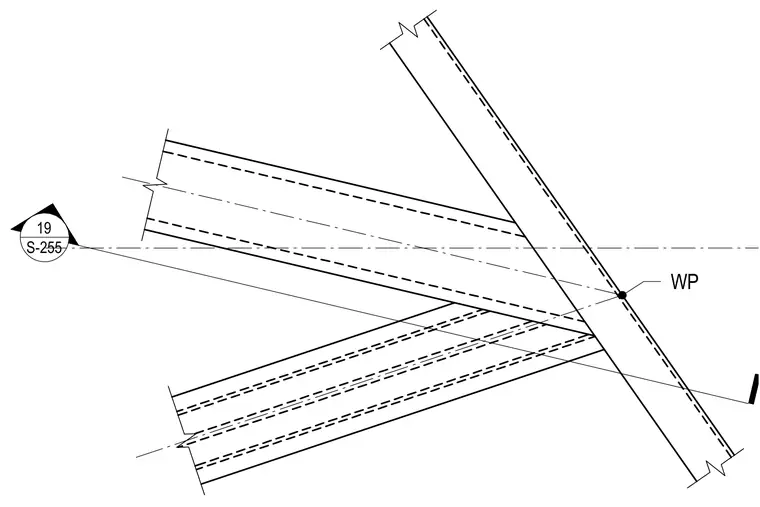

Two hollow structural section web members intersect at a common work point along a continuous hollow structural section chord member. The intersection establishes the setting line geometry for the truss configuration. A reference callout identifies the detail location on sheet S-255.
