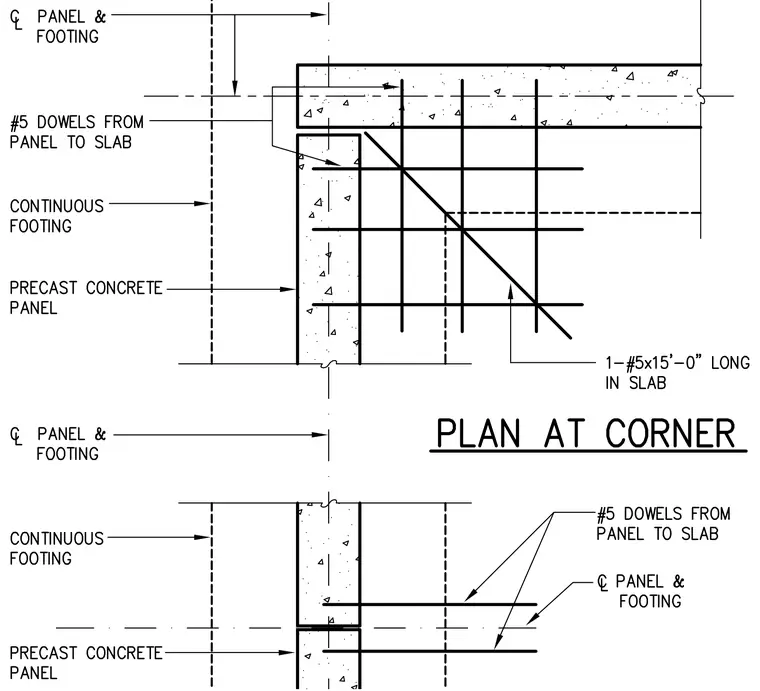

Precast concrete panels bear on a continuous footing with centerlines aligned to the footing layout. Number 5 dowels extend from the precast panel into the slab. A diagonal number 5 bar measuring fifteen feet long reinforces the interior slab corner. Additional number 5 dowels tie across the vertical panel joint.
