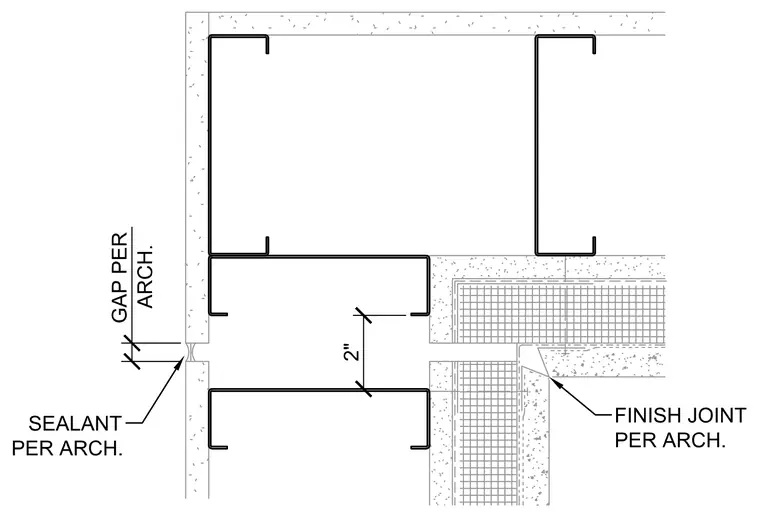

An exterior wall expansion joint incorporates double cold-formed metal framing studs spaced with a two-inch gap. The assembly includes exterior sheathing and interior gypsum board layers terminating at the joint. A sealant joint seals the exterior perimeter per architectural specifications, and the interior finish joint is detailed per architectural plans.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
