Structural · S-CCBP9

Footing Step and Parallel Pipe Trench Details

Materials

Elements

About this detail

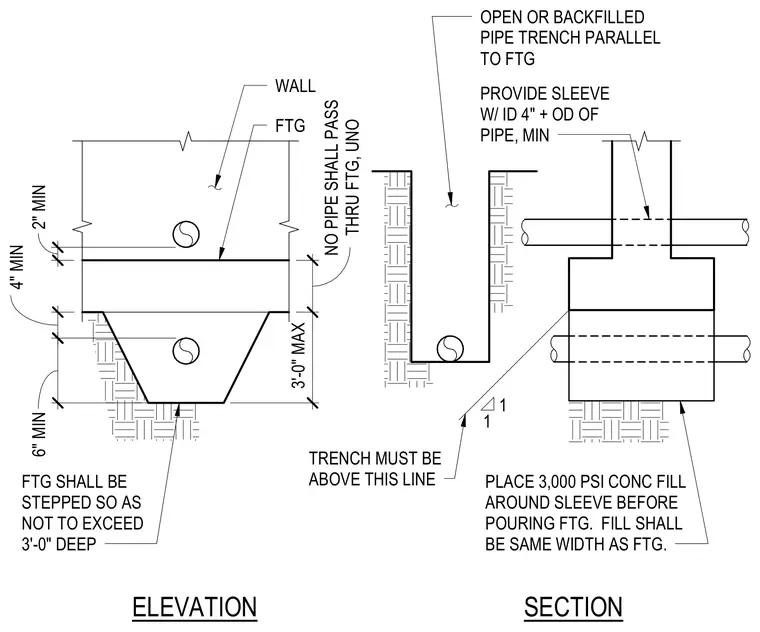

Foundation footings must be stepped so as not to exceed three feet in depth. Open or backfilled pipe trenches running parallel to the footing require a sleeve sized with an inner diameter equal to four inches plus the outer diameter of the pipe. Three thousand psi concrete fill must be placed around the sleeve before pouring the footing, with the fill matching the width of the footing. No pipe shall pass through the footing unless otherwise noted, and adjacent pipe trenches must remain above the specified inclined plane originating from the footing base.
