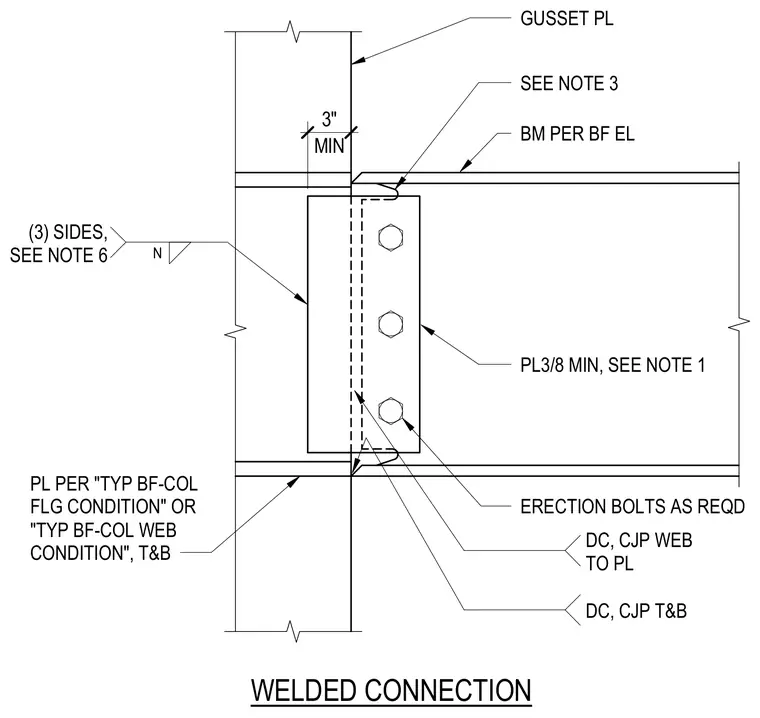

A structural steel beam frames into a column with a gusset plate connection. The beam web and flanges are welded using complete joint penetration welds, with additional plates sized a minimum of three-eighths of an inch thick. Erection bolts are provided as required for temporary alignment during installation. A minimum three-inch clearance is maintained at the gusset plate intersection per engineering notes.
BM PER BF EL DC, CJP WEB TO PL DC, CJP T&B GUSSET PL PL PER "TYP BF-COL FLG CONDITION" OR "TYP BF-COL WEB CONDITION", T&B (3) SIDES, SEE NOTE 6 N PL3/8 MIN, SEE NOTE 1 MIN 3" ERECTION BOLTS AS REQD WELDED CONNECTION SEE NOTE 3
