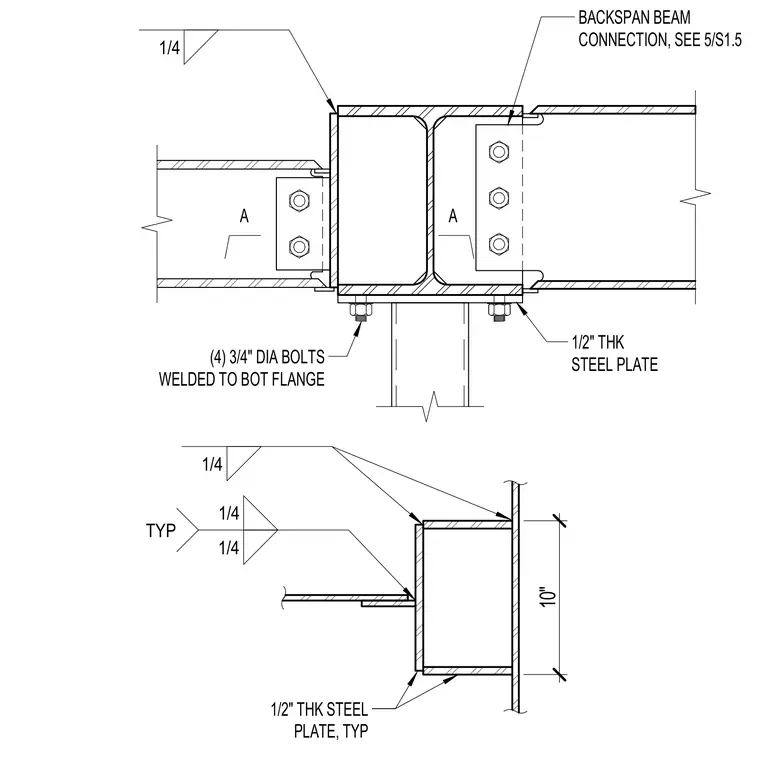

A beam connection frames into a supporting member with a one-half-inch thick steel plate welded to the bottom flange using quarter-inch fillet welds. Four three-quarter-inch diameter bolts secure the connection assembly. An adjacent detail provides section views indicating typical plate dimensions and weld sizes.
BACKSPAN BEAM CONNECTION, SEE 5/S1.5 1/4 A A 1/4 1/4 TYP (4) 3/4" DIA BOLTS WELDED TO BOT FLANGE 1/2" THK STEEL PLATE 1/2" THK STEEL PLATE, TYP 10" 1/4
