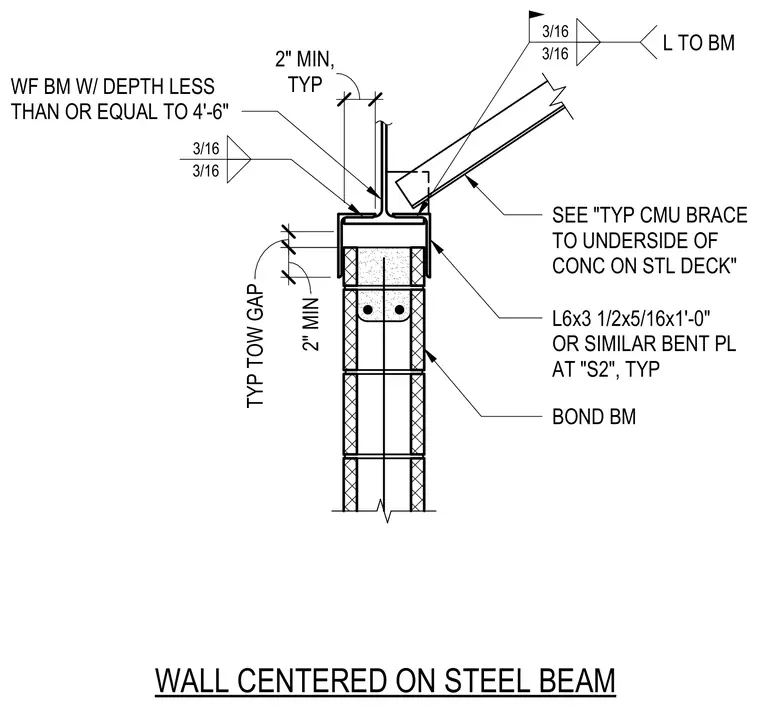

A masonry wall is centered on a wide-flange steel beam with a depth less than or equal to four feet six inches. A three-inch typical top-of-wall gap is maintained beneath a wide-flange beam welded to a bent plate sized at six by three and a half by five-sixteenths inches by one foot zero inches, or a similar bent plate at S2. A bond beam supports the assembly with three-sixteenths-inch fillet welds. Lateral support is provided by an angle brace welded with three-sixteenths-inch fillet welds to the beam.
3" TYP TOW GAP SEE "TYP CMU BRACE TO UNDERSIDE OF CONC ON STL DECK" L6x3 1/2x5/16x1'-0" OR SIMILAR BENT PL AT "S2", TYP BOND BM L TO BM 3/16 3/16 3/16 3/16 WALL CENTERED ON STEEL BEAM 1 1/2" WF BM W/ DEPTH LESS THAN OR EQUAL TO 4'-6" 2 7/8" 2" MIN 2" MIN, TYP
