Steel stiffener plates are welded to each side of a wide-flange beam or column web using three-eighths-inch plates and one-quarter-inch fillet welds on each plate, with corners clipped to clear the k region. Continuity plates match the thickness of the connecting flange and are welded with complete joint penetration at the flange and five-sixteenths-inch welds at the web, incorporating a one-half-inch drilled hole and plate cope to clear the k region.

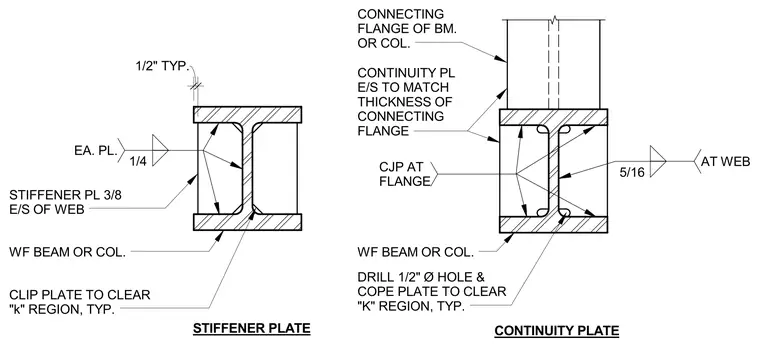

STIFFENER PLATE CONTINUITY PLATE CLIP PLATE TO CLEAR "k" REGION, TYP. WF BEAM OR COL. STIFFENER PL 3/8 E/S OF WEB 1/2" TYP. DRILL 1/2" Ø HOLE & COPE PLATE TO CLEAR "K" REGION, TYP. CONNECTING FLANGE OF BM. OR COL. CONTINUITY PL E/S TO MATCH THICKNESS OF CONNECTING FLANGE EA. PL. 1/4 WF BEAM OR COL. CJP AT FLANGE AT WEB 5/16
