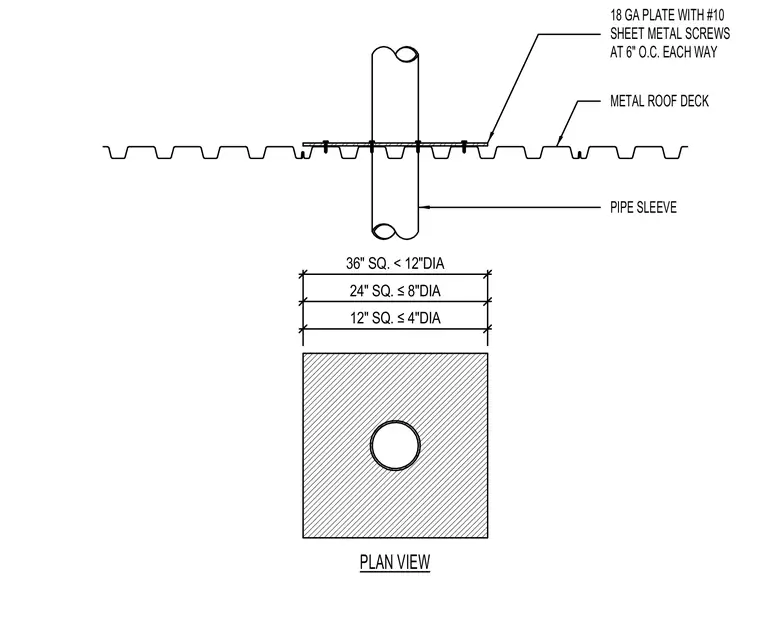

A pipe sleeve penetrates a corrugated metal roof deck and is secured by an 18 gauge steel plate fastened with number 10 sheet metal screws at six inches on center each way. Sizing criteria dictate plate dimensions based on pipe diameter, ranging from a twelve inch square for pipes four inches in diameter or smaller, up to a thirty-six inch square for pipes greater than twelve inches in diameter.
PIPE SLEEVE 18 GA PLATE WITH #10 SHEET METAL SCREWS AT 6" O.C. EACH WAY METAL ROOF DECK PLAN VIEW 36" SQ. < 12"DIA 24" SQ. ≤ 8"DIA 12" SQ. ≤ 4"DIA
