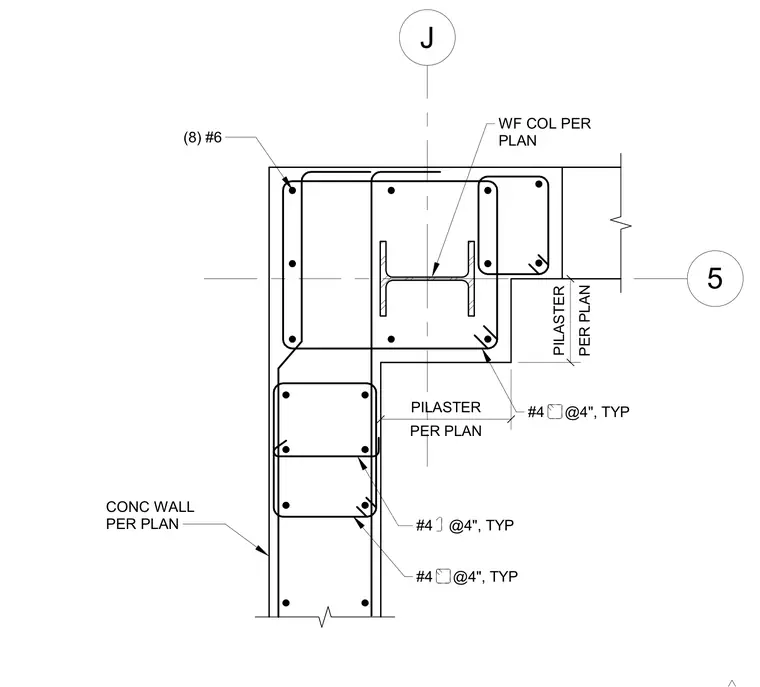

A concrete wall per plan connects to a pilaster per plan enclosing a wide flange column sized per plan. The pilaster and wall are reinforced with number four bars at four inches spacing typically. Eight number six bars provide vertical reinforcement within the pilaster assembly.
J 5 CONC WALL PER PLAN #4 @4", TYP #4 @4", TYP #4 @4", TYP PER PLAN PILASTER PER PLAN PILASTER WF COL PER PLAN (8) #6
