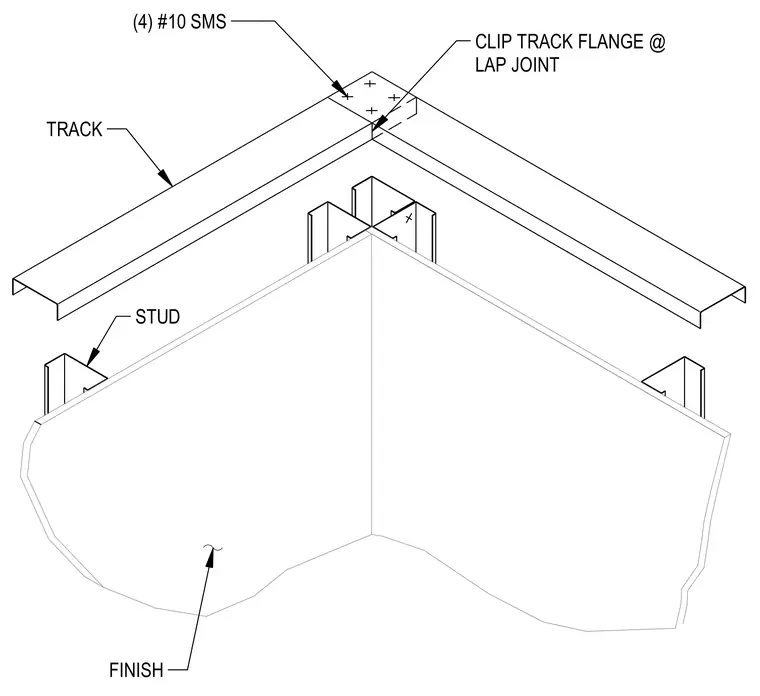

Cold-formed steel wall framing at an internal corner utilizing top and bottom tracks with vertical studs. A clip track flange secures the lap joint at the corner intersection using four number ten sheet metal screws. Interior finish material lines the inside of the wall assembly.
