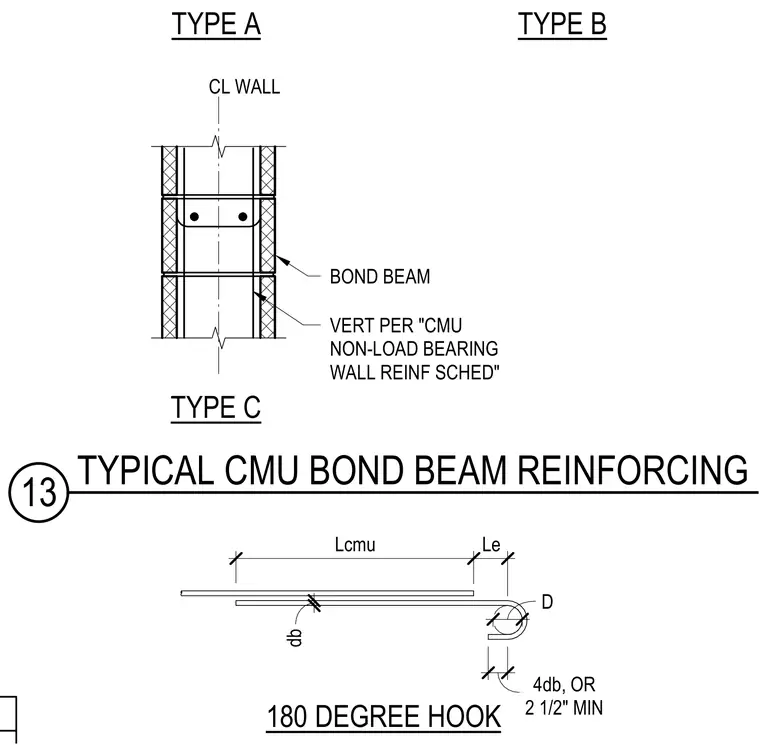

Concrete masonry unit bond beam reinforcing details include wall section configurations and standard 180-degree hook dimensions. Vertical reinforcement is placed per the CMU non-load bearing wall reinforcing schedule centered within the masonry wall. Reinforcement lap splices and hook lengths are detailed with standard bar diameters and minimum dimensions.
4db, OR 2 1/2" MIN db 180 DEGREE HOOK 6" db D 4db, OR 2 1/2" MIN 49" 7" Lcmu Le TYPE A TYPE B TYPE C CL WALL VERT PER "CMU NON-LOAD BEARING WALL REINF SCHED" BOND BEAM 13 TYPICAL CMU BOND BEAM REINFORCING
