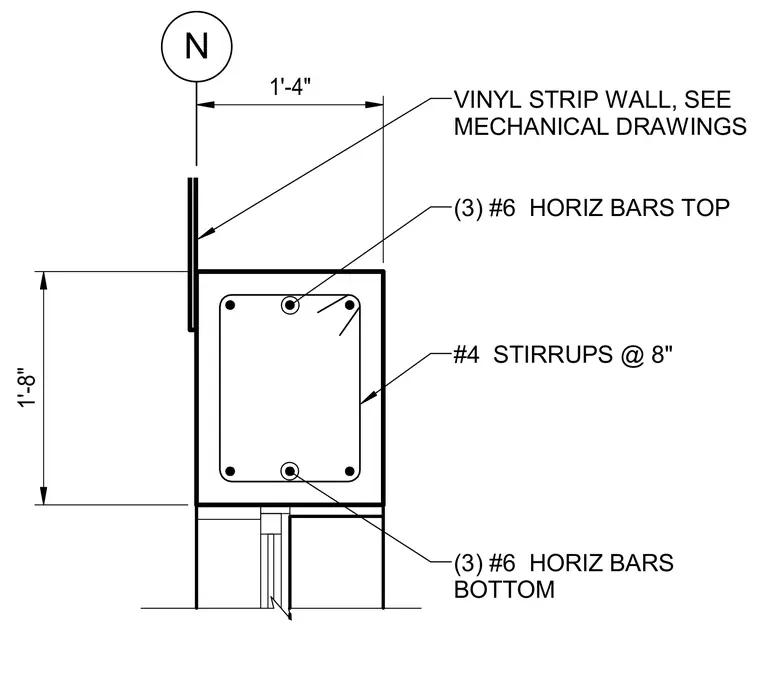

A reinforced concrete beam measuring one foot eight inches deep by one foot four inches wide. The assembly contains three number six horizontal reinforcing bars at the top and three number six horizontal reinforcing bars at the bottom. Number four stirrups enclose the longitudinal steel at eight inches on center. A vinyl strip wall aligns with the beam face, coordinated with mechanical drawings.
(3) #6 HORIZ BARS TOP #4 STIRRUPS @ 8" (3) #6 HORIZ BARS BOTTOM N VINYL STRIP WALL, SEE MECHANICAL DRAWINGS 1'-4" 1'-8"
