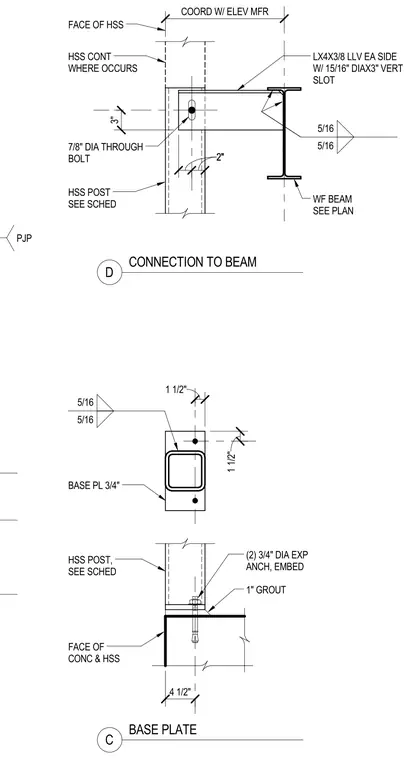

An HSS post connects to a wide-flange beam using an LX4x3/8 angle on each side with a fifteen-sixteenths-inch diameter by three-inch vertical slot and a seven-eighths-inch diameter through bolt. The beam is welded with five-sixteenths-inch welds as sized per plan. At the base, the HSS post rests on a three-quarter-inch base plate anchored into concrete with two three-quarter-inch diameter expansion anchors over one inch of grout. An HSS continues where specified, coordinated with the elevator manufacturer.
PJP 5/16 5/16 5/16 5/16 3" COORD W/ ELEV MFR HSS CONT WHERE OCCURS 7/8" DIA THROUGH BOLT HSS POST SEE SCHED WF BEAM SEE PLAN FACE OF HSS LX4X3/8 LLV EA SIDE W/ 15/16" DIAX3" VERT SLOT 2"2" (2) 3/4" DIA EXP ANCH, EMBED 1" GROUT FACE OF CONC & HSS BASE PL 3/4" HSS POST, SEE SCHED 4 1/2" 1 1/2" 1 1/2" C BASE PLATE D CONNECTION TO BEAM
