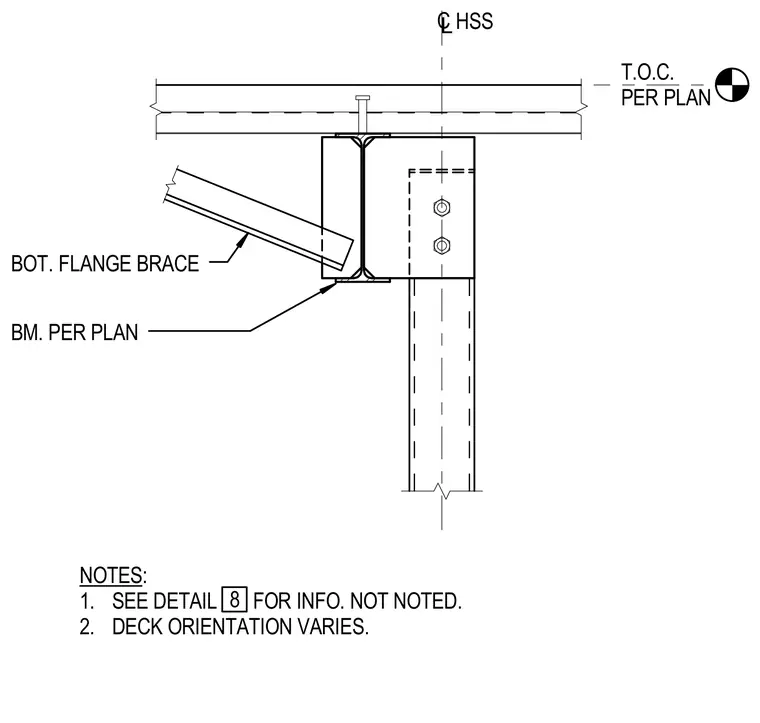

A bottom flange brace connects to a beam sized per plan supported by a hollow structural section column. The beam is topped with a metal deck and a stud anchor aligned with the column centerline. The top of the column is positioned per plan.
L C BOT. FLANGE BRACE BM. PER PLAN HSS T.O.C. PER PLAN NOTES: 1. SEE DETAIL FOR INFO. NOT NOTED. 2. DECK ORIENTATION VARIES. 8
