A wide flange beam bears onto a hollow structural section or pipe column via a column cap plate sized to match the beam width or column width plus one-half inch with a three-quarter inch minimum thickness. Three-eighths inch stiffener plates are welded to each side of the column using three-sixteenths inch fillet welds on three sides with two-inch returns. The column cap plate is secured to the column with a one-quarter inch fillet weld. A shear tab connection utilizing two three-quarters inch diameter ASTM A307 bolts at standard gauge connects the beam web to the support, with a total of four bolts configured per standard wide flange beam connection details.

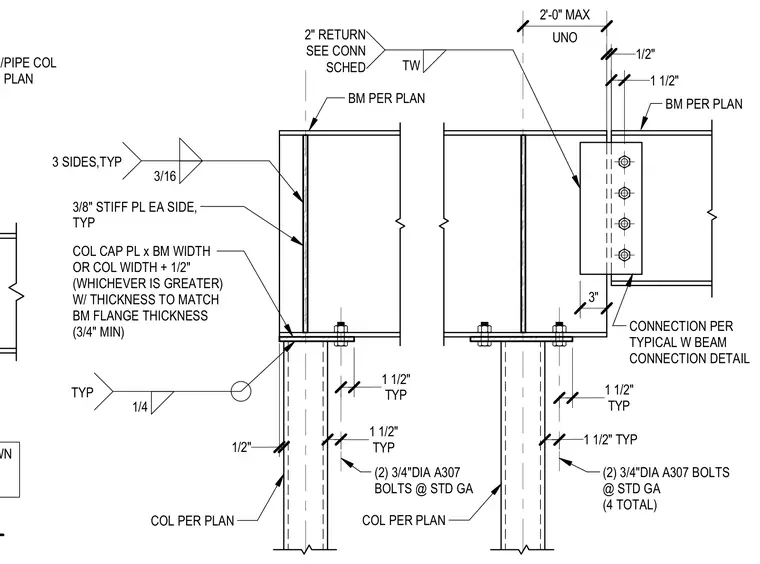

HSS/PIPE COL PER PLAN FOR ITEMS NOT SHOWN 1/2" TYP 1 1/2" TYP 1 1/2" BM PER PLAN 3/8" STIFF PL EA SIDE, TYP COL CAP PL x BM WIDTH OR COL WIDTH + 1/2" (WHICHEVER IS GREATER) W/ THICKNESS TO MATCH BM FLANGE THICKNESS (3/4" MIN) TYP 1 1/2" 1 1/2" TYP UNO 2'-0" MAX 1 1/2" 3" CONNECTION PER TYPICAL W BEAM CONNECTION DETAIL (2) 3/4"DIA A307 BOLTS @ STD GA (4 TOTAL) COL PER PLAN (2) 3/4"DIA A307 BOLTS @ STD GA COL PER PLAN 1/4 TYP 3/16 3 SIDES,TYP TW 2" RETURN SEE CONN SCHED 1/2" BM PER PLAN
