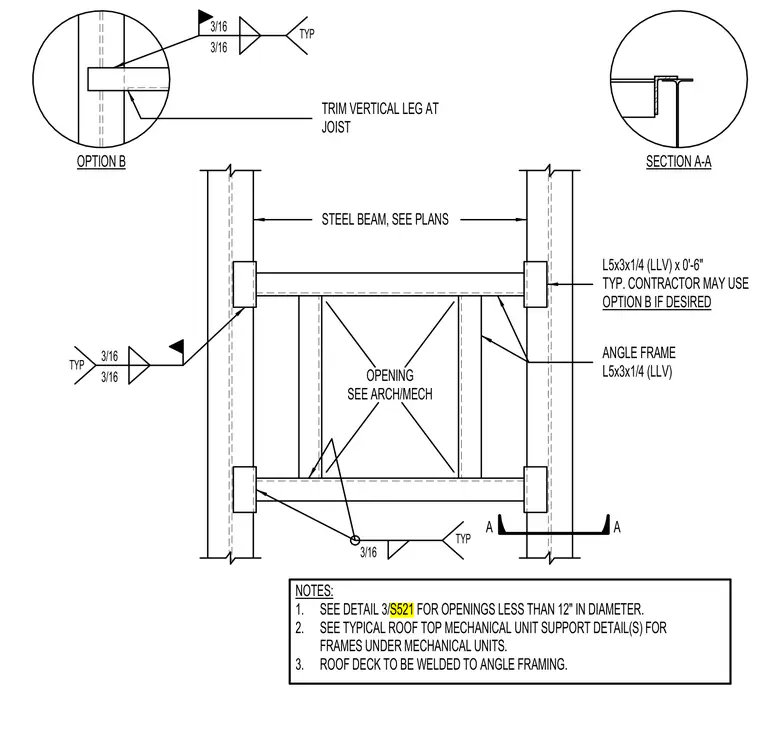

An angle frame composed of L5x3x1/4 angles spans between structural steel beams to frame a roof opening, with the vertical leg trimmed at the joist. Three-sixteenth-inch fillet welds secure the angle framing to the support members, with an optional connection detail provided for alternative installation. The roof deck is welded to the surrounding angle framing, and openings less than twelve inches in diameter require a separate detail. Additional support frames must be installed beneath mechanical units according to typical roof-top details.
OPENING SEE ARCH/MECH OPTION B NOTES: 1. SEE DETAIL 3/S521 FOR OPENINGS LESS THAN 12" IN DIAMETER. 2. 3. SEE TYPICAL ROOF TOP MECHANICAL UNIT SUPPORT DETAIL(S) FOR FRAMES UNDER MECHANICAL UNITS. ROOF DECK TO BE WELDED TO ANGLE FRAMING. TRIM VERTICAL LEG AT JOIST STEEL BEAM, SEE PLANS L5x3x1/4 (LLV) x 0'-6" TYP. CONTRACTOR MAY USE OPTION B IF DESIRED ANGLE FRAME L5x3x1/4 (LLV) 3/16 TYP TYP 3/16 3/16 3/16 TYP 3/16 A A SECTION A-A
