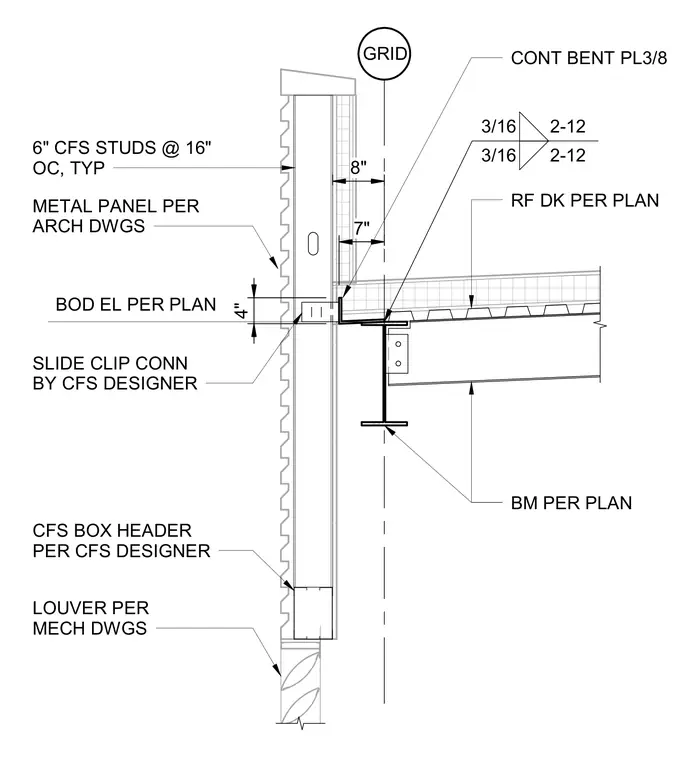

A continuous 3/8-inch bent plate connects to the structural steel roof deck and framing beam, providing a slide clip connection for the cold-formed steel framing. The cold-formed steel assembly consists of 6-inch studs spaced at 16 inches on center, a cold-formed steel box header, and exterior metal panels and louvers sized per architectural and mechanical drawings. Dimensions detail the offset from the grid line to the exterior wall framing and structural elements.
8" 3/16 2-12 3/16 2-12 7" BOD EL PER PLAN 151' - 1" 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY CFS DESIGNER GRID 4" LOUVER PER MECH DWGS CFS BOX HEADER PER CFS DESIGNER
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
