Buckling restrained brace connections to a wide-flange beam and column comprise Grade 50 gusset plates welded to the structural members with five-sixteenth-inch fillet welds on three sides typically. One-half-inch stiffener plates and continuity plates are provided near side and far side where indicated. Connections include bolted or welded attachments designed by the buckling restrained brace manufacturer. Erection plates and snips are detailed at beam-to-column intersections per the structural requirements.

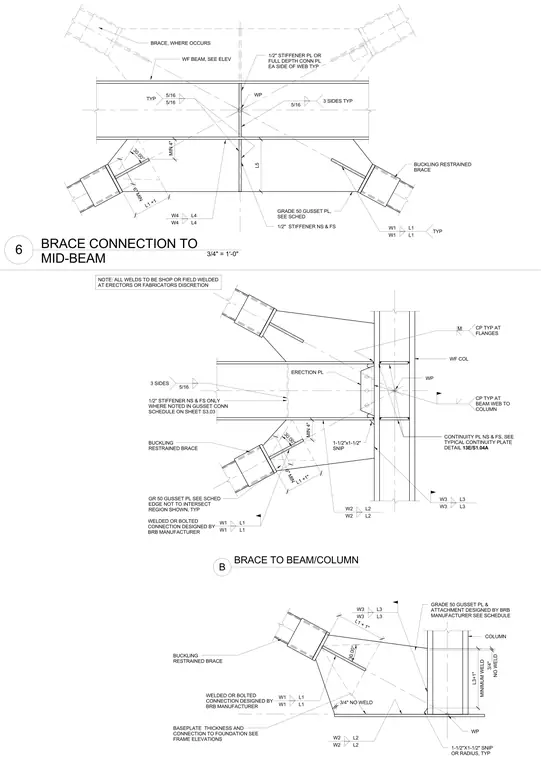

WP 1/2" STIFFENER NS & FS GRADE 50 GUSSET PL, SEE SCHED BUCKLING RESTRAINED BRACE W4 L4 W4 L4 5/16 5/16 TYP WF BEAM, SEE ELEV 1/2" STIFFENER PL OR FULL DEPTH CONN PL EA SIDE OF WEB TYP BRACE, WHERE OCCURS W1 L1 W1 L1 TYP 6" MIN 30.00° MIN 4" L1 +1 L5 5/16 3 SIDES TYP NOTE: ALL WELDS TO BE SHOP OR FIELD WELDED AT ERECTORS OR FABRICATORS DISCRETION WP GRADE 50 GUSSET PL & ATTACHMENT DESIGNED BY BRB MANUFACTURER SEE SCHEDULE WF COL WP GR 50 GUSSET PL SEE SCHED EDGE NOT TO INTERSECT REGION SHOWN, TYP ERECTION PL BUCKLING RESTRAINED BRACE CP TYP AT BEAM WEB TO COLUMN W1 L1 W1 L1 CP TYP AT FLANGES M W1 L1 W1 L1 W3 L3 W3 L3 W2 L2 W2 L2 B BRACE TO BEAM/COLUMN W2 L2 W2 L2 L1 + 1" 30.00° W3 L3 W3 L3 30.00° L1 +1" 6" MIN MIN 4" BASEPLATE THICKNESS AND CONNECTION TO FOUNDATION SEE FRAME ELEVATIONS BUCKLING RESTRAINED BRACE CONTINUITY PL NS & FS, SEE TYPICAL CONTINUITY PLATE DETAIL 13E/S1.04A 1/2" STIFFENER NS & FS ONLY WHERE NOTED IN GUSSET CONN SCHEDULE ON SHEET S3.03 5/16 3 SIDES COLUMN NO WELD 3/4" 1-1/2"X1-1/2" SNIP OR RADIUS, TYP MINIMUM WELD L3+1" 1-1/2"x1-1/2" SNIP WELDED OR BOLTED CONNECTION DESIGNED BY BRB MANUFACTURER 3/4" NO WELD WELDED OR BOLTED CONNECTION DESIGNED BY BRB MANUFACTURER 3/4" = 1'-0" 6 BRACE CONNECTION TO MID-BEAM
