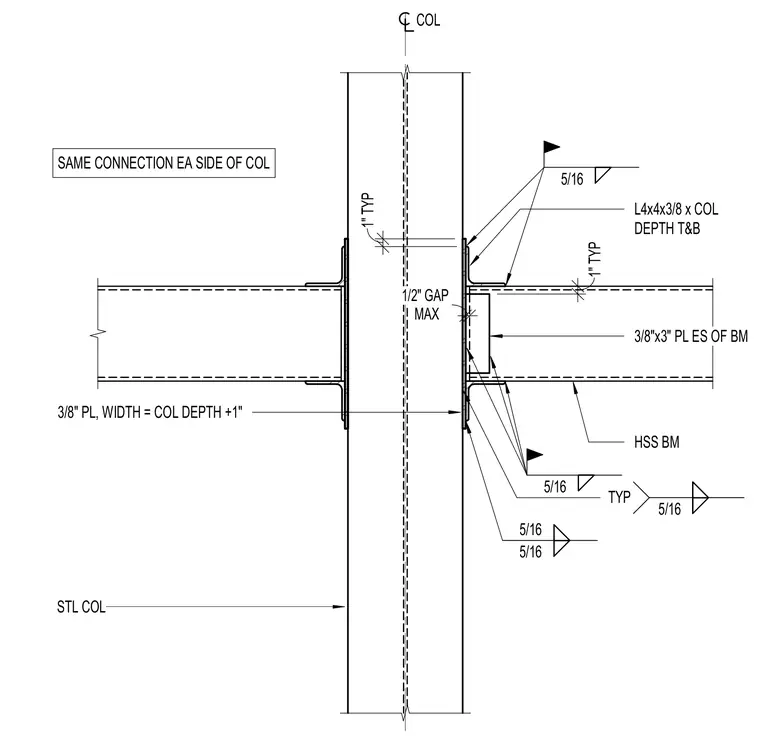

Hollow structural section beams frame into the web of a structural steel hollow structural section column with a maximum one-half-inch gap. Top and bottom angles measuring L4x4x3/8 extend the column depth and attach with five-sixteenth-inch fillet welds. Three-eighths-inch by three-inch plates weld to each side of the beam, paired with a three-eighths-inch plate across the column face where the width equals the column depth plus one inch. A typical one-inch clearance is maintained at the beam flanges. The connection is mirrored on each side of the column web.
1" TYP STL COL HSS BM 1" TYP 5/16 TYP MAX 1/2" GAP COL 3/8" PL, WIDTH = COL DEPTH +1" 5/16 5/16 3/8"x3" PL ES OF BM 5/16 5/16 L4x4x3/8 x COL DEPTH T&B SAME CONNECTION EA SIDE OF COL
