Structural · S-CAAS6

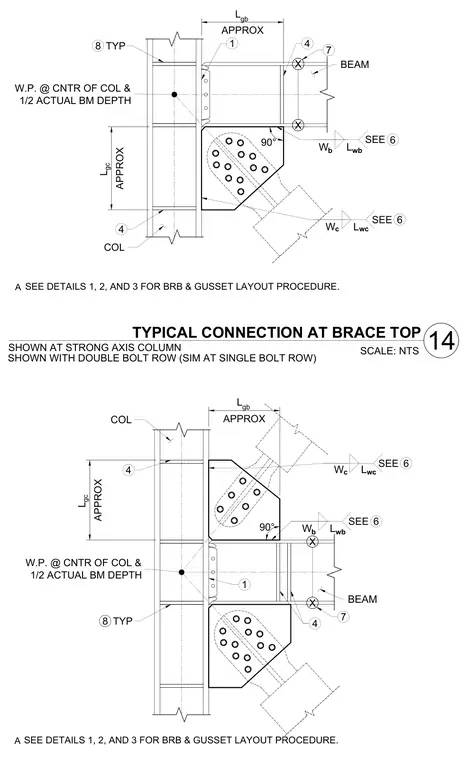

Typical Brace Connection at Column and Beam

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

A structural brace connection occurs at the top and bottom of a buckling-restrained brace framing into a steel column and beam intersection. The gusset plate connects the brace to the column flange and the beam web, with working points established at the center of the column and one-half of the actual beam depth. Bolt patterns, weld sizes, and plate dimensions are coordinated with layout procedures referenced on related drawings. The connection accommodates both single and double bolt rows depending on design requirements at strong axis column locations.
