Concrete Placement and Deflection Notes on Metal Deck

Materials

Elements

Beams Floors / Slabs Decks Expansion / Control Joints

About this detail

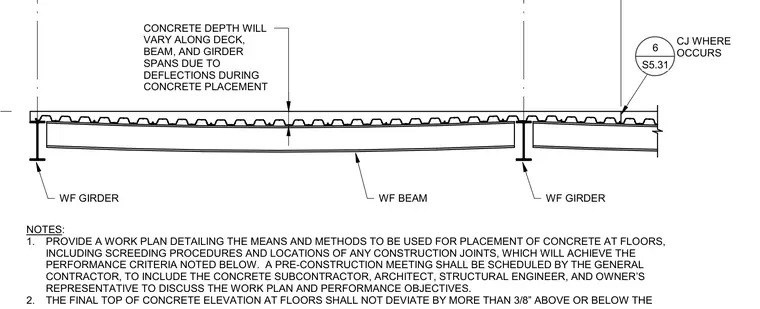

Concrete depth varies along deck, beam, and girder spans due to deflections occurring during concrete placement. A work plan detailing placement means and methods, screeding procedures, and construction joint locations must be provided by the contractor. A pre-construction meeting with the general contractor, concrete subcontractor, architect, structural engineer, and owner's representative is required. The final top of concrete elevation at floors must not deviate beyond the specified tolerance.
