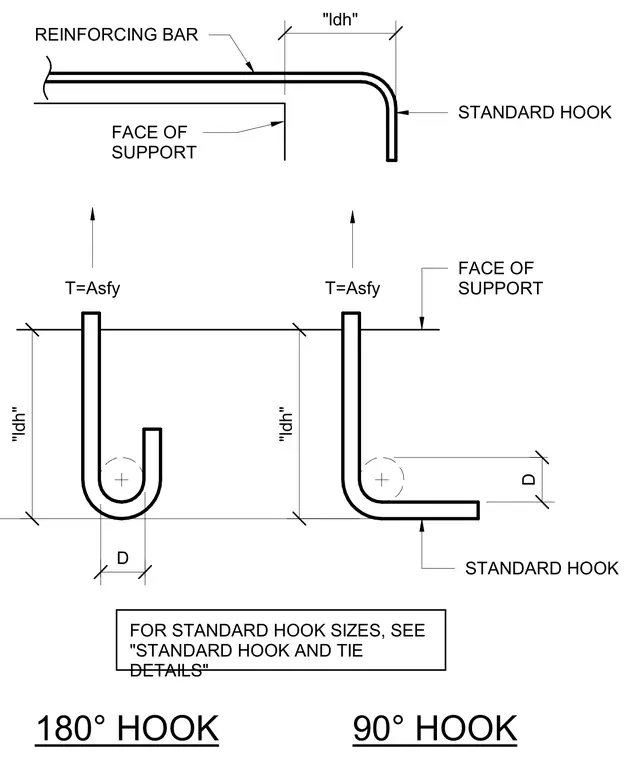

Reinforcing bars terminate at the face of support with standard hooks requiring specific embedment lengths designated as ldh. The 90-degree and 180-degree hook configurations maintain tension force equal to area of steel multiplied by yield strength. Standard hook bend diameters and dimensions comply with standard hook and tie details.
REINFORCING BAR T=Asfy FACE OF SUPPORT FACE OF SUPPORT STANDARD HOOK 90° HOOK 180° HOOK T=Asfy D D "ldh" FOR STANDARD HOOK SIZES, SEE "STANDARD HOOK AND TIE DETAILS" "ldh" "ldh" STANDARD HOOK
