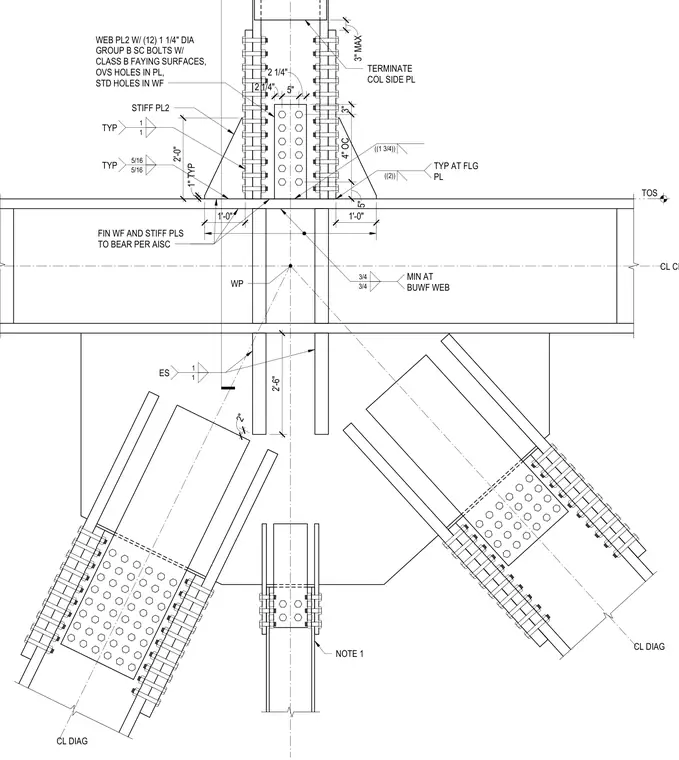

This structural steel connection details a heavy braced frame gusset plate assembly at a column and beam intersection. The web plate connects using twelve one-and-one-quarter-inch-diameter Group B slip-critical bolts with Class B faying surfaces, utilizing oversized holes in the plate and standard holes in the wide flange. Stiffener plates are welded with five-sixteenth-inch fillet welds typical at the flange plate, while built-up wide flange webs receive three-quarter-inch fillet welds. Wide flange fin and stiffener plates are detailed to bear per AISC guidelines. Diagonal braces frame into the gusset plate assembly with bolted splice connections.
2" 2'-6" 3" 4" OC 5" 2 1/4" 5" 2 1/4" 3" MAX 2'-0" 1'-0" 1" TYP 1'-0" CL DIAG CL DIAG CL CHORD TOS TERMINATE COL SIDE PL WEB PL2 W/ (12) 1 1/4" DIA GROUP B SC BOLTS W/ CLASS B FAYING SURFACES, OVS HOLES IN PL, STD HOLES IN WF STIFF PL2 TYP 1 1 TYP 5/16 5/16 ((1 3/4)) TYP AT FLG PL ((2)) MIN AT BUWF WEB 3/4 3/4 FIN WF AND STIFF PLS TO BEAR PER AISC ES 1 1 NOTE 1 WP
