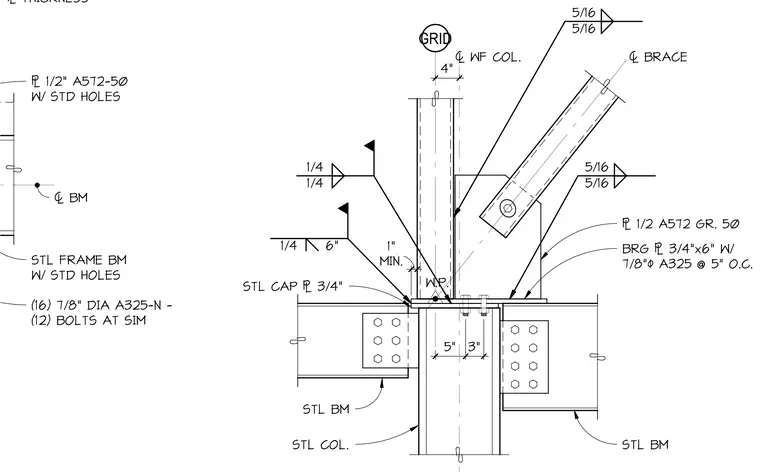

This structural connection detail features a wide-flange steel column intersecting with steel framing beams, a structural brace, and a gusset plate assembly. The brace connects to a one-half-inch thick A572 Grade 50 gusset plate welded to the column and a three-quarter-inch by six-inch bearing plate with seven-eighth-inch diameter A325 bolts at five inches on center. The steel framing beams connect to the column flange using standard holes and sixteen seven-eighth-inch diameter A325-N bolts, with twelve bolts used at similar conditions. A three-quarter-inch steel cap plate sits atop the column below the gusset connection, with quarter-inch and five-sixteenth-inch fillet welds specified throughout the joint. A one-inch minimum clearance is maintained at the work point.
GRID ' 1/2" A572-50 W/ STD HOLES * BM STL FRAME BM W/ STD HOLES (16) 7/8" DIA A325-N - (12) BOLTS AT SIM GUSSET ' THICKNESS STL BM W.P. 4" 5" 3" MIN. 1" STL BM STL COL. STL CAP ' 3/4" 1/4 6" 1/4 1/4 * WF COL. * BRACE BRG ' 3/4"x6" W/ 7/8". A325 @ 5" O.C. ' 1/2 A572 GR. 50 5/16 5/16 5/16 5/16
