Structural · S-C9QBM

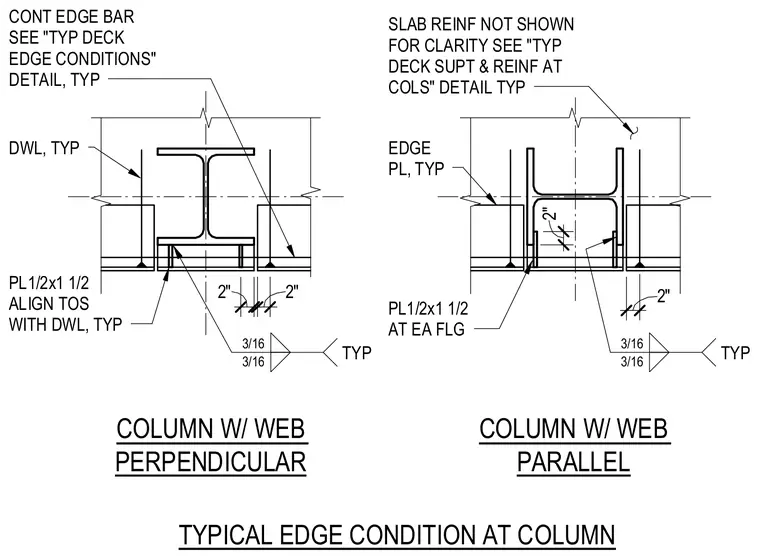

Typical Edge Condition at Column

Elements

About this detail

Typical structural steel column edge conditions for two orientations feature the column web perpendicular and parallel to the slab edge. Half-inch by one-and-a-half-inch plates are aligned with the top of steel with typical fillet welds joining the plates to the flanges. Edge plates, continuous edge bars, and dowels are positioned relative to the column flanges. Slab reinforcement is omitted for clarity with references provided to related deck support and edge condition details.
