A six-inch suspended concrete slab is reinforced with number 4 rebar spaced at twelve inches on center each way. The slab is supported by structural steel framing including hollow structural section members sized HSS 6x6x1/4, HSS 6x6x3/8, and HSS 12x2x1/4, along with HSS 12x2x5/16 members designated with LSV tags. Connection tags CC-24B, CW-12A, and CL-12A reference standard structural details for the assembly.

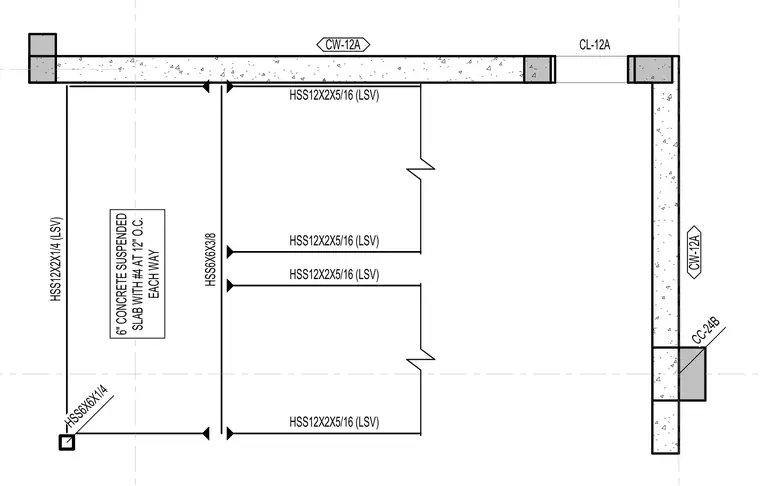

HSS6X6X1/4 HSS12X2X1/4 (LSV) HSS6X6X3/8 HSS12X2X5/16 (LSV) HSS12X2X5/16 (LSV) HSS12X2X5/16 (LSV) HSS12X2X5/16 (LSV) 6" CONCRETE SUSPENDED SLAB WITH #4 AT 12" O.C. EACH WAY CC-24B CW-12A CW-12A CL-12A
