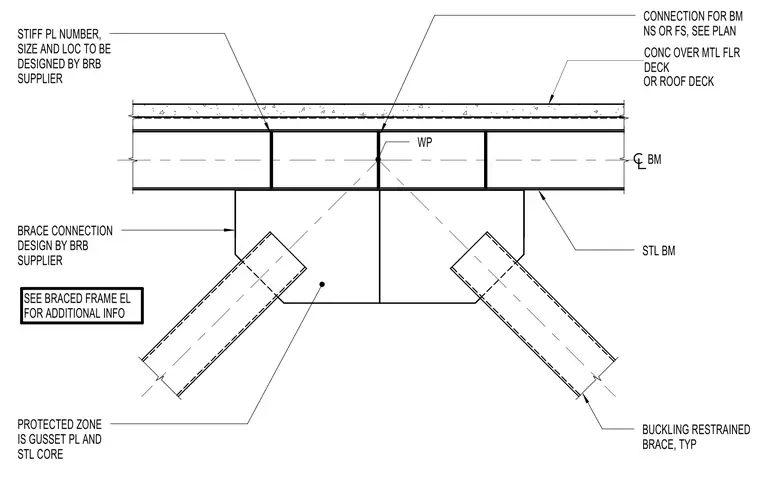

An inverted V-braced frame connection features buckling restrained braces framing into a gusset plate welded to a structural steel beam supporting a concrete over metal floor deck or roof deck. The brace connection design and the stiffener plate number, size, and location are provided by the buckling restrained brace supplier. The protected zone encompasses the gusset plate and the steel core of the brace. The work point of the connection aligns with the centerline of the beam, with additional information available on the braced frame elevation and roof deck connection details.
STIFF PL NUMBER, SIZE AND LOC TO BE DESIGNED BY BRB SUPPLIER BRACE CONNECTION DESIGN BY BRB SUPPLIER PROTECTED ZONE IS GUSSET PL AND STL CORE STL BM BUCKLING RESTRAINED BRACE, TYP BM CONC OVER MTL FLR DECK WP SEE BRACED FRAME EL FOR ADDITIONAL INFO OR ROOF DECK CONNECTION FOR BM NS OR FS, SEE PLAN
