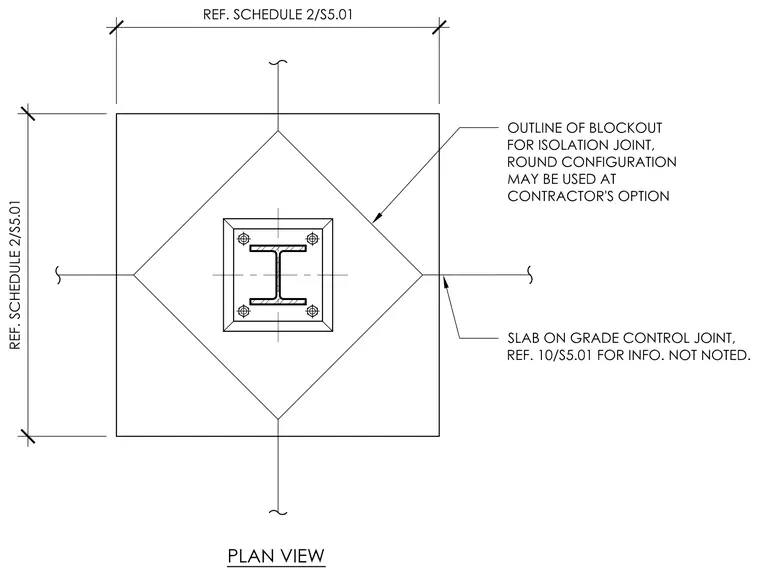

This structural detail shows a steel column base plate assembly centered within a square blockout in a slab on grade. The outline of the blockout accommodates an isolation joint, with a round configuration permitted at the contractor's option as indicated by drawing notes. Dimensions reference schedule 2 on sheet S5.01 for sizing. A slab on grade control joint intersects the assembly, referencing detail 10 on sheet S5.01 for additional information not explicitly noted.
