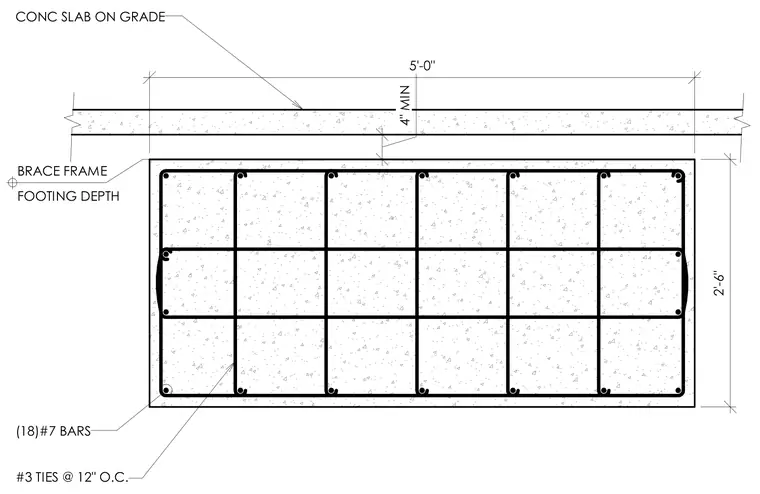

A reinforced concrete grade beam foundation supports a four-inch minimum concrete slab on grade above. The rectangular concrete section contains eighteen number seven longitudinal reinforcing bars distributed across the profile. Number three ties spaced at twelve inches on center enclose the longitudinal reinforcement. The footing depth measures two feet six inches with a five-foot overall width.
2'-6" 5'-0" 4" MIN (18)#7 BARS #3 TIES @ 12" O.C. CONC SLAB ON GRADE FOOTING DEPTH BRACE FRAME
