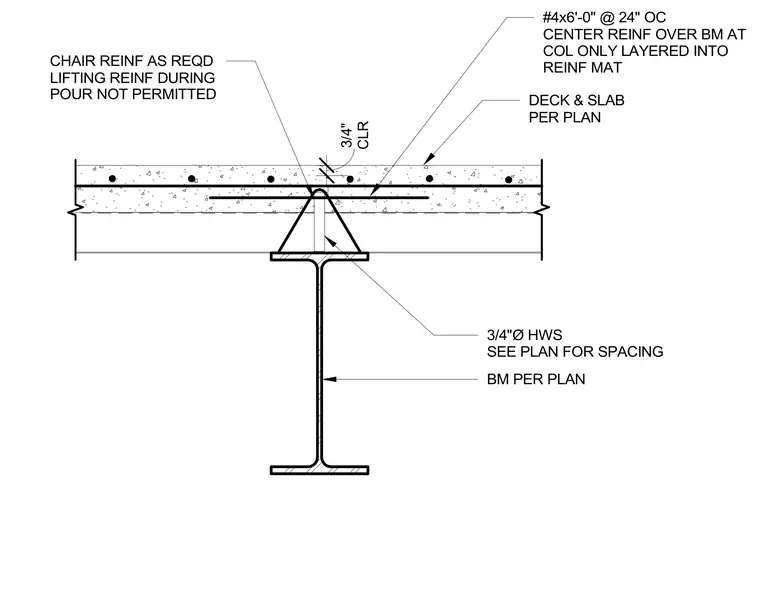

A structural steel beam supports a concrete slab over a metal deck per plan. Three-quarter inch diameter headed stud anchors welded to the top flange provide composite action. Reinforcing bars measuring number four by six feet are spaced at twenty-four inches on center and layered into the reinforcement mat, centered over the beam at columns only with three-quarter inch clearance. Chair reinforcement is provided as required, and lifting reinforcement during the pour is prohibited.
CHAIR REINF AS REQD LIFTING REINF DURING POUR NOT PERMITTED DECK & SLAB PER PLAN 3/4"Ø HWS SEE PLAN FOR SPACING BM PER PLAN #4x6'-0" @ 24" OC CENTER REINF OVER BM AT COL ONLY LAYERED INTO REINF MAT CLR 3/4"
