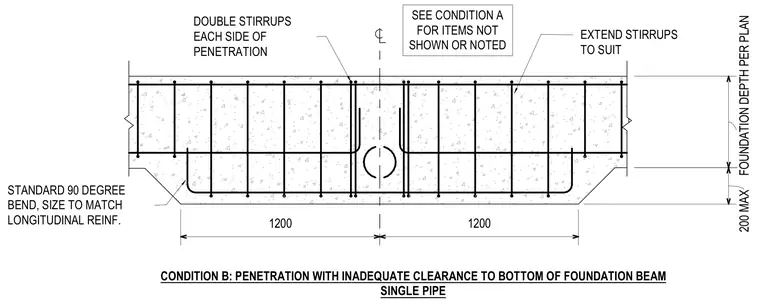

Reinforcement modifications accommodate a single pipe penetration through a concrete foundation beam with inadequate clearance to the bottom of the beam. Double stirrups are placed on each side of the penetration, with longitudinal stirrups extended to suit the localized drop. Additional U-shaped reinforcing bars feature standard ninety-degree bends sized to match the longitudinal reinforcement.
1200 1200 FOUNDATION DEPTH PER PLAN 200 MAX EXTEND STIRRUPS TO SUIT DOUBLE STIRRUPS EACH SIDE OF PENETRATION CONDITION B: PENETRATION WITH INADEQUATE CLEARANCE TO BOTTOM OF FOUNDATION BEAM SINGLE PIPE SEE CONDITION A FOR ITEMS NOT SHOWN OR NOTED STANDARD 90 DEGREE BEND, SIZE TO MATCH LONGITUDINAL REINF.
