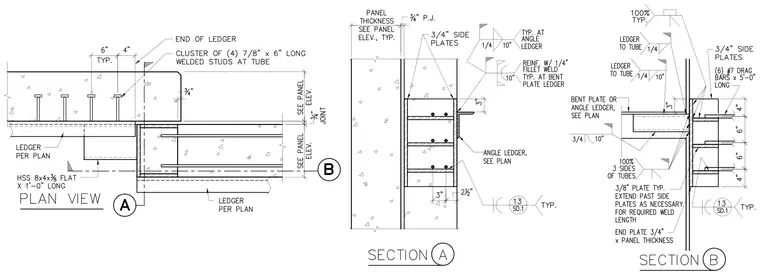

The plan view details a precast wall panel bearing on an HSS 8x4x3/8 flat by 1'-0" long ledger with a cluster of four 7/8 inch diameter by 6 inch long welded studs at the tube. Section A features the connection with a bent plate or angle ledger reinforced with a 1/4 inch fillet weld, 3/4 inch side plates, and reinforcing bars inside the precast panel. Section B incorporates 3/4 inch side plates, six #7 drag bars spanning 5'-0" long, and continuous 1/4 inch fillet welds around three sides of the tubes.
