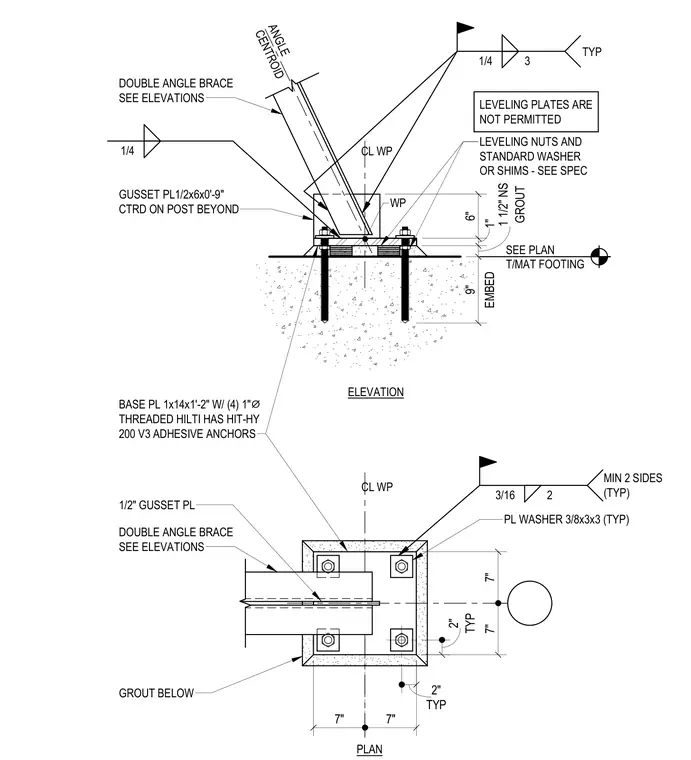

A double-angle brace connects to a half-inch thick gusset plate centered on a post beyond, secured with quarter-inch fillet welds. The base plate measuring one by fourteen inches by one foot two inches is anchored to the concrete footing using four one-inch diameter threaded Hilti HAS HIT-HY 200 V3 adhesive anchors with three-eighths by three by three inch plate washers. Leveling nuts and standard washers or shims are permitted per specification, while leveling plates are prohibited. A one-and-a-half-inch non-shrink grout layer is placed below the base plate over the footing. A half-inch gusset plate connects the double-angle brace using three-sixteenth-inch fillet welds on two sides typically.
LEVELING NUTS AND STANDARD WASHER OR SHIMS - SEE SPEC LEVELING PLATES ARE NOT PERMITTED 7" 7" 7" 7" PLAN ELEVATION EMBED 9" GROUT 1 1/2" NS 1" 6" WP TYP 2" 3/16 2 MIN 2 SIDES (TYP) PL WASHER 3/8x3x3 (TYP) TYP 2" GROUT BELOW BASE PL 1x14x1'-2" W/ (4) 1" ⌀ THREADED HILTI HAS HIT-HY 200 V3 ADHESIVE ANCHORS ANGLE CENTROID 1/4 GUSSET PL1/2x6x0'-9" CTRD ON POST BEYOND DOUBLE ANGLE BRACE SEE ELEVATIONS SEE PLAN T/MAT FOOTING 1/2" GUSSET PL DOUBLE ANGLE BRACE SEE ELEVATIONS CL WP 1/4 3 TYP CL WP
