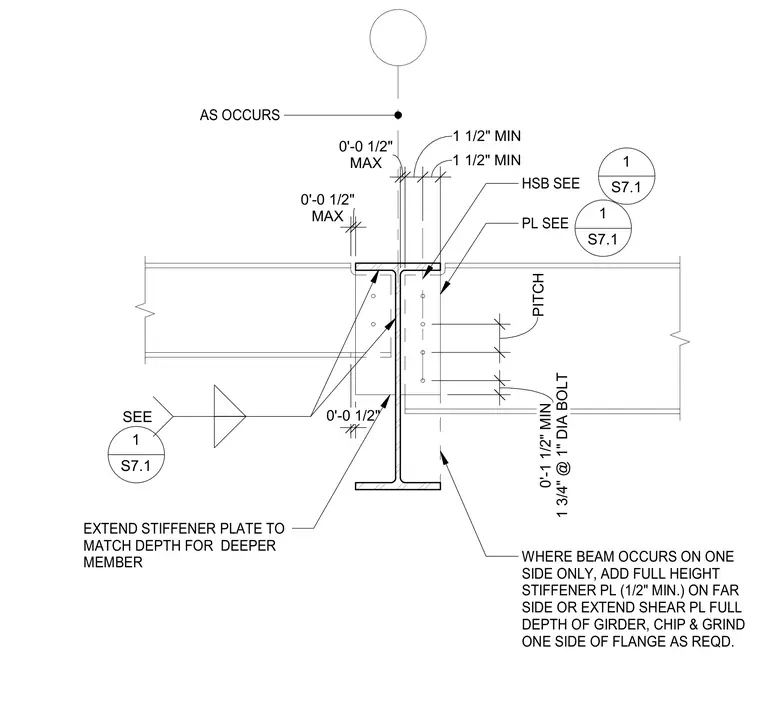

A typical beam-to-girder framing connection utilizes a shear plate and bolts. One-inch diameter bolts are spaced at one and three-quarter inch pitches with specified minimum and maximum edge and clearance dimensions. Where a beam occurs on one side only, a full height stiffener plate of one-half inch minimum thickness is added on the far side or the shear plate is extended the full depth of the girder, requiring one side of the flange to be chipped and ground as necessary. Stiffener plates are extended to match the depth for deeper members.
MAX 0'-0 1/2" 1 1/2" MIN 1 1/2" MIN MAX 0'-0 1/2" 0'-0 1/2" PITCH 1 3/4" @ 1" DIA BOLT 0'-1 1/2" MIN SEE EXTEND STIFFENER PLATE TO MATCH DEPTH FOR DEEPER MEMBER WHERE BEAM OCCURS ON ONE SIDE ONLY, ADD FULL HEIGHT STIFFENER PL (1/2" MIN.) ON FAR SIDE OR EXTEND SHEAR PL FULL DEPTH OF GIRDER, CHIP & GRIND ONE SIDE OF FLANGE AS REQD. PL SEE HSB SEE AS OCCURS 1 S7.1 1 S7.1 1 S7.1
