This structural detail outlines design loads and geometric constraints for davit pedestals and fall arrest tiebacks. The davit pedestal requires a six-inch minimum diameter and a seven-foot maximum height, supporting a dead load of two hundred pounds alongside maximum operating loads multiplied by a four-factor safety margin. Loads are assumed to rotate three hundred sixty degrees in a horizontal plane about the pedestal center line. The fall arrest tieback requires a four-inch minimum diameter and a two-foot six-inch maximum height, resisting a five-thousand-pound ultimate load in any direction at its top center. Both steel assemblies are tied to elevations specified on plan.

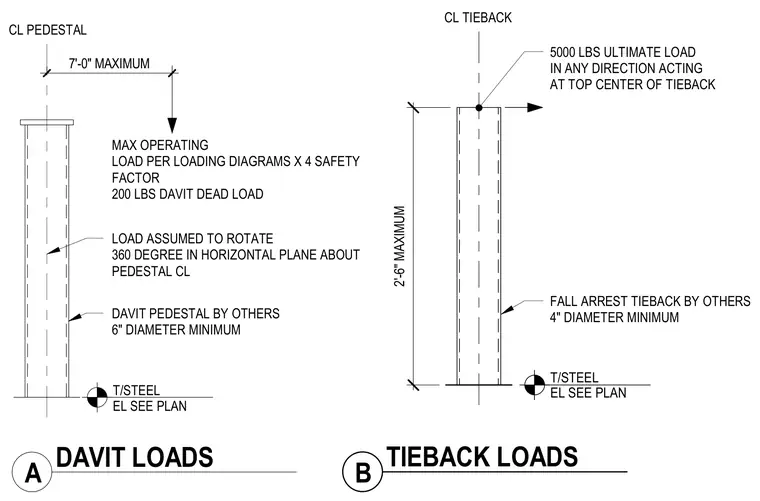

5000 LBS ULTIMATE LOAD IN ANY DIRECTION ACTING AT TOP CENTER OF TIEBACK CL TIEBACK FALL ARREST TIEBACK BY OTHERS 4" DIAMETER MINIMUM 2'-6" MAXIMUM T/STEEL EL SEE PLAN B TIEBACK LOADS LOAD ASSUMED TO ROTATE 360 DEGREE IN HORIZONTAL PLANE ABOUT PEDESTAL CL CL PEDESTAL MAX OPERATING LOAD PER LOADING DIAGRAMS X 4 SAFETY FACTOR 200 LBS DAVIT DEAD LOAD DAVIT PEDESTAL BY OTHERS 6" DIAMETER MINIMUM 7'-0" MAXIMUM T/STEEL EL SEE PLAN A DAVIT LOADS
