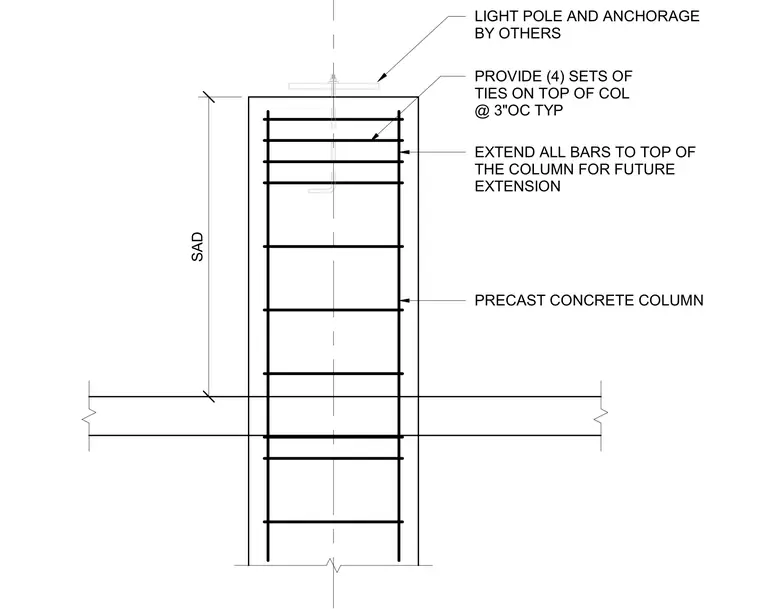

A precast concrete column receives a light pole and anchorage assembly furnished by others at its top terminus. Four sets of ties are provided at three inches on center typically near the top of the column. All vertical reinforcing bars extend to the top of the column to accommodate future extensions.
EXTEND ALL BARS TO TOP OF THE COLUMN FOR FUTURE EXTENSION LIGHT POLE AND ANCHORAGE BY OTHERS SAD PROVIDE (4) SETS OF TIES ON TOP OF COL @ 3"OC TYP PRECAST CONCRETE COLUMN
