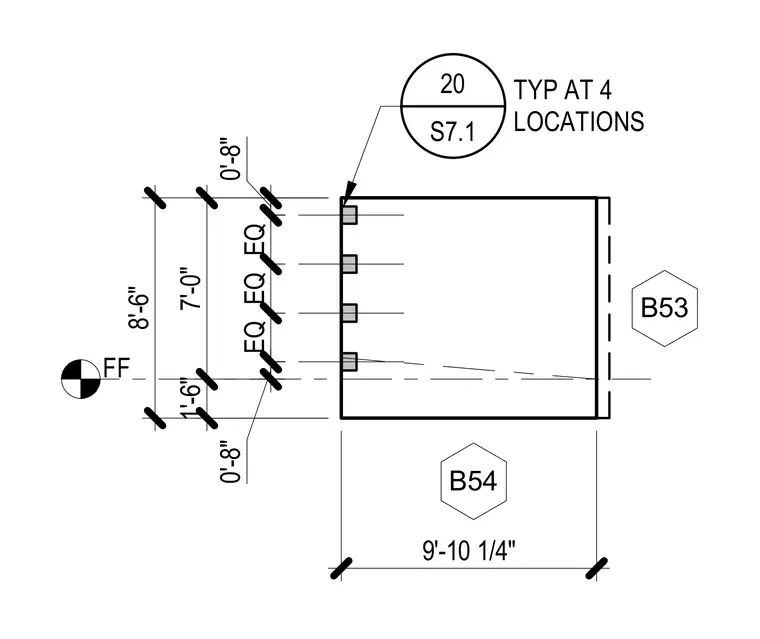

This structural plan segment details framing dimensions between grid lines B53 and B54 with an overall width of 9 feet 10-1/4 inches. The vertical layout spans 8 feet 6 inches total, divided into equal spacing segments of 1 foot 6 inches and 7 feet with 8-inch extensions. Four locations are referenced with detail callout 20 on sheet S7.1.
B54 B53 9'-10 1/4" 8'-6" FF 20 S7.1 TYP AT 4 LOCATIONS 0'-8" 0'-8" EQ EQ EQ 1'-6" 7'-0"
