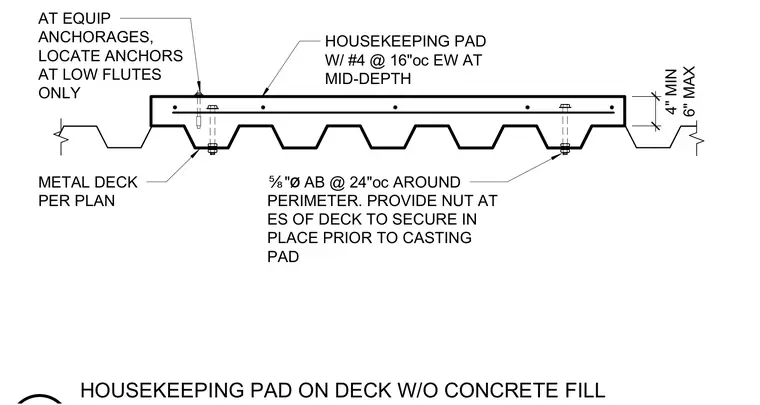

A concrete housekeeping pad sits atop a metal deck without concrete fill, measuring between four and six inches in thickness. Number four reinforcing bars spaced at sixteen inches on center each way run at mid-depth within the pad. Five-eighths-inch-diameter anchor bolts are spaced at twenty-four inches on center around the perimeter and located at the low flutes of the deck only. Nuts are provided at each side of the deck to secure the assembly in place prior to casting the pad.
AT EQUIP ANCHORAGES, LOCATE ANCHORS AT LOW FLUTES ONLY HOUSEKEEPING PAD W/ #4 @ 16"oc EW AT MID-DEPTH METAL DECK PER PLAN Ñ"ø AB @ 24"oc AROUND PERIMETER. PROVIDE NUT AT ES OF DECK TO SECURE IN PLACE PRIOR TO CASTING PAD 4" MIN 6" MAX HOUSEKEEPING PAD ON DECK W/O CONCRETE FILL
