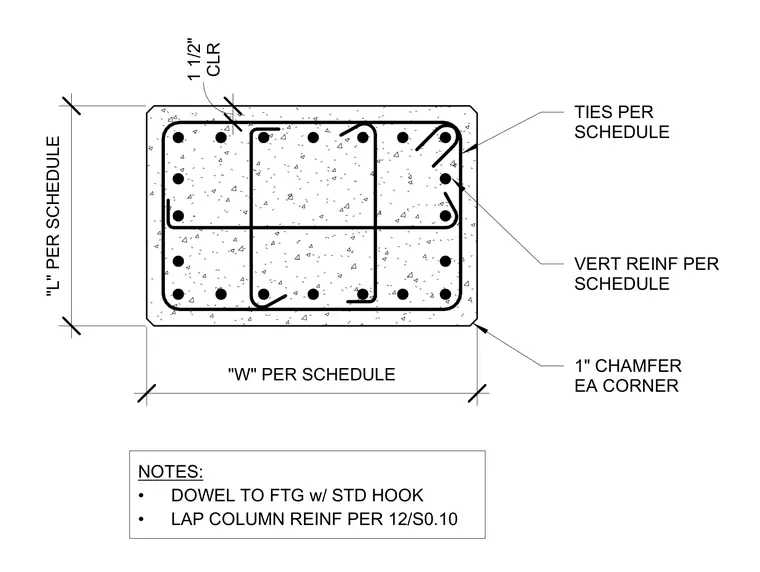

This structural detail shows a cross section of a reinforced concrete column with vertical reinforcing bars and lateral ties sized per the structural schedule. The concrete cover is maintained at 1 1/2 inches to the outside face of the ties. Each of the four corners features a 1-inch chamfer. Additional notes specify that vertical reinforcement must lap per the designated detail and column dowels must tie into the footing with standard hooks.
"L" PER SCHEDULE "W" PER SCHEDULE TIES PER SCHEDULE VERT REINF PER SCHEDULE 1" CHAMFER EA CORNER NOTES: • DOWEL TO FTG w/ STD HOOK • LAP COLUMN REINF PER 12/S0.10 CLR 1 1/2"
