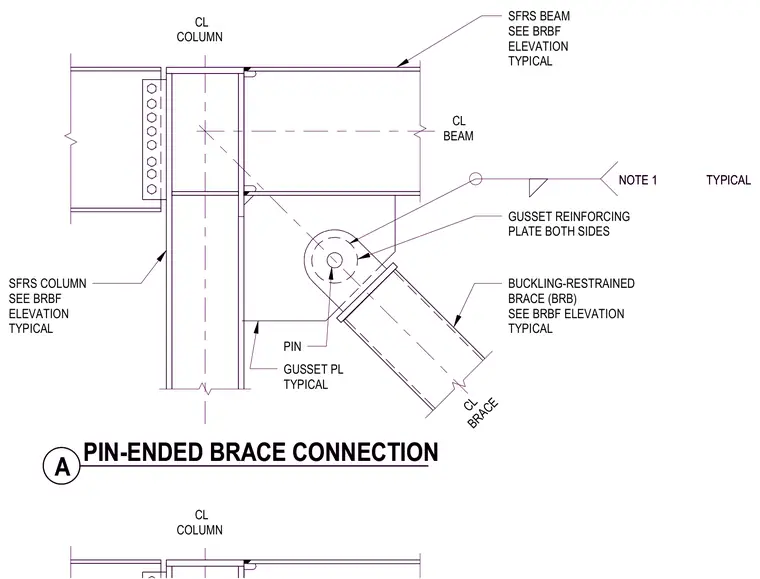

A buckling-restrained brace connects to a structural steel frame using a pin-ended connection at the intersection of a column and a beam. A gusset plate projects from the column and beam intersection, reinforced by gusset reinforcing plates on both sides. A pin passes through the brace and gusset plate assembly to form the pinned connection. The framing members are sized per the structural elevation drawings.
CL COLUMN CL BEAM SFRS BEAM SEE BRBF ELEVATION TYPICAL GUSSET REINFORCING PLATE BOTH SIDES BUCKLING-RESTRAINED BRACE (BRB) SEE BRBF ELEVATION TYPICAL NOTE 1 TYPICAL CL BRACE GUSSET PL TYPICAL PIN SFRS COLUMN SEE BRBF ELEVATION TYPICAL A PIN-ENDED BRACE CONNECTION CL COLUMN CL COLUMN CL BEAM SFRS BEAM SEE BRBF ELEVATION TYPICAL GUSSET REINFORCING PLATE BOTH SIDES BUCKLING-RESTRAINED BRACE (BRB) SEE BRBF ELEVATION TYPICAL NOTE 1 TYPICAL CL BRACE GUSSET PL TYPICAL PIN SFRS COLUMN SEE BRBF ELEVATION TYPICAL A PIN-ENDED BRACE CONNECTION CL COLUMN
