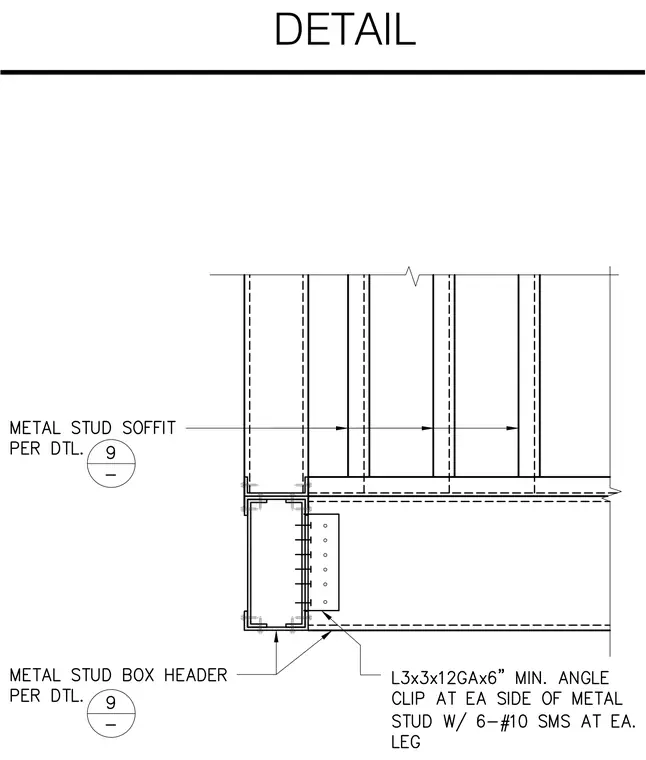

A metal stud soffit connects to a metal stud box header using an L3x3x12 gauge by six inch minimum angle clip at each side of the metal stud with six number ten self-tapping metal screws at each leg. The metal stud soffit framing is installed per detail 9.
